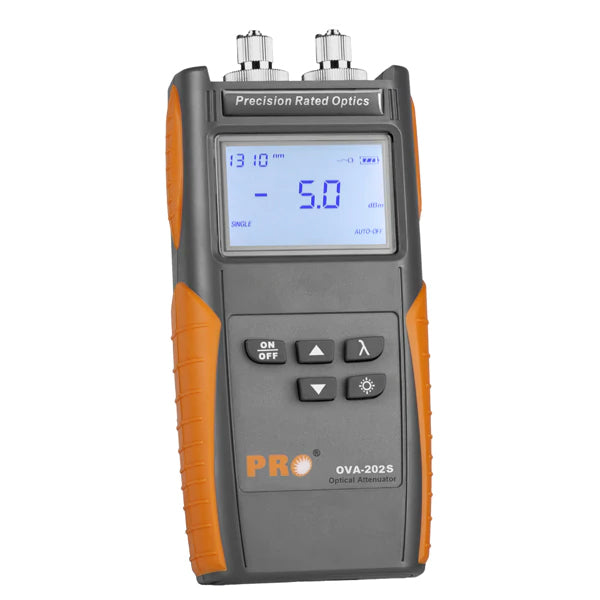

OVA-202S

The Optical Variable Attenuator is a compact, portable instrument widely used in fiber link certification and routine maintenance as well as lab environments.

Features

• Emulate Fiber Loss for Testing System Dynamics
• Installation and Maintenance of Multi-Mode and Single-Mode Fiber
• Testing of Optical Return Loss in
• Either Field or Laboratory Environments

Downloads

Specifications

• Attenuation Range: (dB) 0~60
• Fiber Type: SMF 9/125 um
• Calibrated Wavelengths (nm): 1310/1550nm
• Linearity: (dB) ?0.3
• Accuracy (dB): 0.2dB @3~20dB, 0.5dB @ 20~50dB, 1.0dB@50~60 dB
• Insert Ion Loss (dB): <3
• Return Loss (dB): >50 (PC)
• Max Input Power: (dBm) 24
• Power Supply: 1.2 V Ni-MH Battery (x2)
• Connector: Interchangeable FC/PC, SC/PC, ST/PC Connectors (FC/APC, SC/APC are Available at time of Ordering)
• Operating Temperature: -10°C to 50°C (14°F to 122°F)
• Storage Temperature: -20°C to 60°C (-4°F to 140°F)
• Relative Humidity: 0%~95% (Non-Condensing)
• Dimensions: 6.3"L x .3"W x 1.75"H in (160L x 76W x 45H mm)
• Weight: 0.80 lbs (360 g) (Battery included)
• Warranty: Standard 1 Year Manufacturer Warranty (Extended Warranty Available)
