Fujikura 90S Fusion Splicer
(Core Alignment)

AFL SKU: S017519
Fujikura 90S Fusion Splicer<br>(Core Alignment)

Fujikura 90S Fusion Splicer
(Core Alignment)

AFL SKU: S017519
  • Worldwide shipping
Regular price $11,499.99
/

Fujikura 90S Fusion Splicer

The 90S is the latest core alignment splicer from Fujikura. It’s designed to give you high quality splices and to stay in the field. The 90S kit solves common problems seen in the field today, from splicing poor quality legacy fiber to automated equipment maintenance and upkeep. The 90S can be utilized in any field splicing application seen today: bend-insensitive fibers in drop cables, long-haul terrestrial and submarine LEAF fibers, loose buffer fiber, splice on connectors, and the list goes on. The speed and accuracy of the 90S even make it suitable for certain production and specialty environments, where high output, tight packaging, and low loss requirements are needed. Regardless your scenario, the 90S is designed to keep you going with an extended battery life of 300 splice and heat cycles, and by alleviating the need for traditional operation tasks such as; frequent arc calibrations, cleaver blade rotations, cleaver usage tracking, and manual splicing operations with its multiple automated and ease-of-use features. A redesigned work tray, cooling tray, and optional cable clamp make the 90S kit more versatile than any of its predecessors in adapting to varying work conditions and environments. In addition, if you are splicing loose buffer fiber, there is no longer a need to purchase and swap out with an additional sheath clamp. Now, a universal sheath clamp that handles both loose and tight buffer fiber is standard.

Features:

  • Cleaver tracking and upkeep with wireless communication
  • Automated wind protector, sheath clamps and splice operation
  • Loose and tight buffer with same sheath clamp
  • Lithium-ion battery with 300 splices/shrinks per charge
  • Graphical User Interface with 5.0" Touchscreen
  • PC software and 90S manual downloaded from splicer

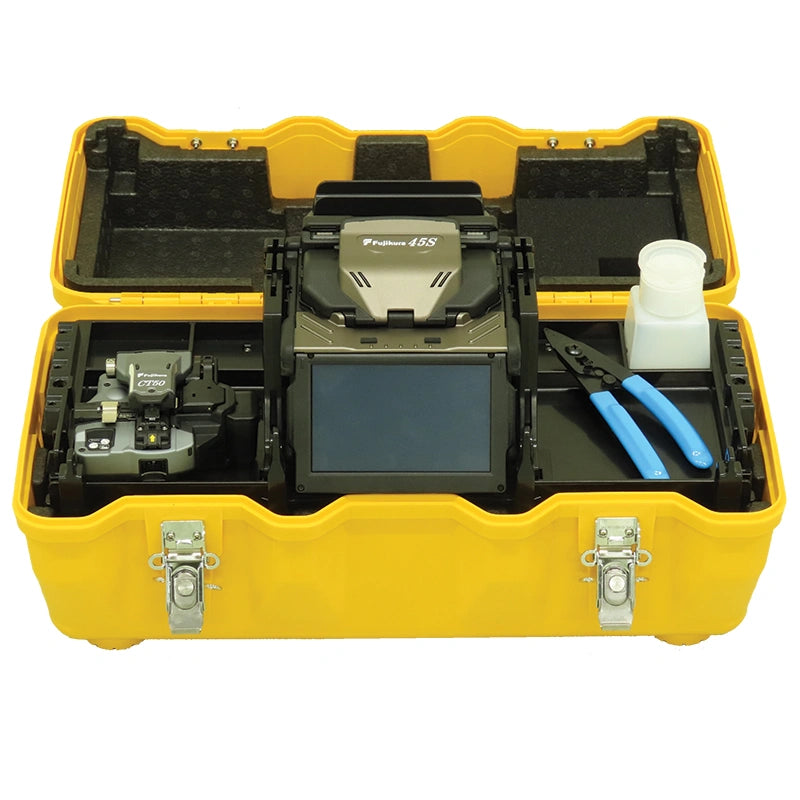

  • Multi-function transit case with integrated workstation

Applications:

  • Distribution fiber repair
  • Long-haul network installation
  • Field termination with splice-on connectors
  • Access network installation
  • Fanout kits, pigtails and splice cassettes
  • OSP cable installation and repair
  • Optical modules – splitters, couplers, MUXs, EDFAs and attenuators

Available Configurations

PART NUMBER DESCRIPTION
S017519 Option 1: Splicer Only - 90S Fusion Splicer, ADC-20 AC Adapter, ACC-14 AC Cord, BTR-15 Battery, ELCT2-16B Spare Electrodes (pair), Sheath Clamps, SP-03 Fiber Holder Set Plates, USB-01 Cable, Alcohol Dispenser, Screwdriver, Splicer Carrying Strap, Quick Reference Guide, TS-03 Tripod Screw, Work Tray J-Plate, SS03 Single Fiber Stripper, CC39 Transit Case with Carrying Strap, and Two Year Warranty
S017520 Option 2: Splicer Only (No Bluetooth) - 90S Fusion Splicer without Bluetooth, ADC-20 AC Adapter, ACC-14 AC Cord, BTR-15 Battery, ELCT2-16B Spare Electrodes (pair), Sheath Clamps, SP-03 Fiber Holder Set Plates, USB-01 Cable, Alcohol Dispenser, Screwdriver, Splicer Carrying Strap, Quick Reference Guide, TS-03 Tripod Screw, Work Tray J-Plate, SS03 Single Fiber Stripper, CC39 Transit Case with Carrying Strap, and Two Year Warranty
S017521 Option 3: Splicer Kit (with cleaver) - 90S Fusion Splicer, CT50 Cleaver, ADC-20 AC Adapter, ACC-14 AC Cord, BTR-15 Battery, ELCT2-16B Spare Electrodes (pair), Sheath Clamps, SP-03 Fiber Holder Set Plates, USB-01 Cable, Alcohol Dispenser, Screwdriver, Splicer Carrying Strap, Quick Reference Guide, TS-03 Tripod Screw, Work Tray J-Plate, SS03 Single Fiber Stripper, CC39 Transit Case with Carrying Strap, and Two Year Warranty

Available Accessories

*Call for pricing and availability

PART NUMBER DESCRIPTION
Cleavers
S017004 CT08 Cleaver
S017030 CT50 Cleaver
Fiber Holders (pair)
S017111 FH-70-250 (250 μm coated fiber)
S017113 FH-70-900 (900 μm jacketed fiber)
S017095 FH-70-160 (160 μm coated fiber)
S015181 FH-60-LT900 (Loose buffer 900 μm fiber)
FUSEConnect  Accessories
S014696 FH-FC-20 (900 μm within 2.0 mm sheathing) (each)
S014695 FH-FC-30 (900 μm within 3.0 mm sheathing) (pair)
S014697 FH-FC-900 (900 μm cable) (each)
S014705 CLAMP-FC-2000 (pair)
S014704 CLAMP-FC-3000 (pair)
Power Supply Options and Equipment
S017513 ADC-20 AC Adapter
S014536 ACC-14 AC Power Cord
S017512 BTR-15 Battery
S017527 DCC-20 Power Cord (connects AC Adapter to cigarette lighter socket)
S017528 DCC-21 Power Cord (connects AC Adapter to power source via alligator clips)
Miscellaneous
S017098 SS03 Single fiber stripper (3 hole)
S017099 SS01 Single fiber stripper (1 hole)
S017103 ELCT2-16B Electrodes
S017518 SP-03 Fiber Holder Set Plates
S017696 S90 Universal Sheath Clamps
S014773 Portable Tripod Workstation (see product profile for more detail)
S010532 ASW-02 Splicing Workstation (see product profile for more detail)
S017515 WT-09R Work Tray Right
S017516 WT-09L Work Tray Left
S017517 JP-09 Work Tray J-Plate
S017522 JP-10 J-Plate (Cooling tray attaches to splicer)
S017523 JP-10-FC J-Plate with Fiber Clamps

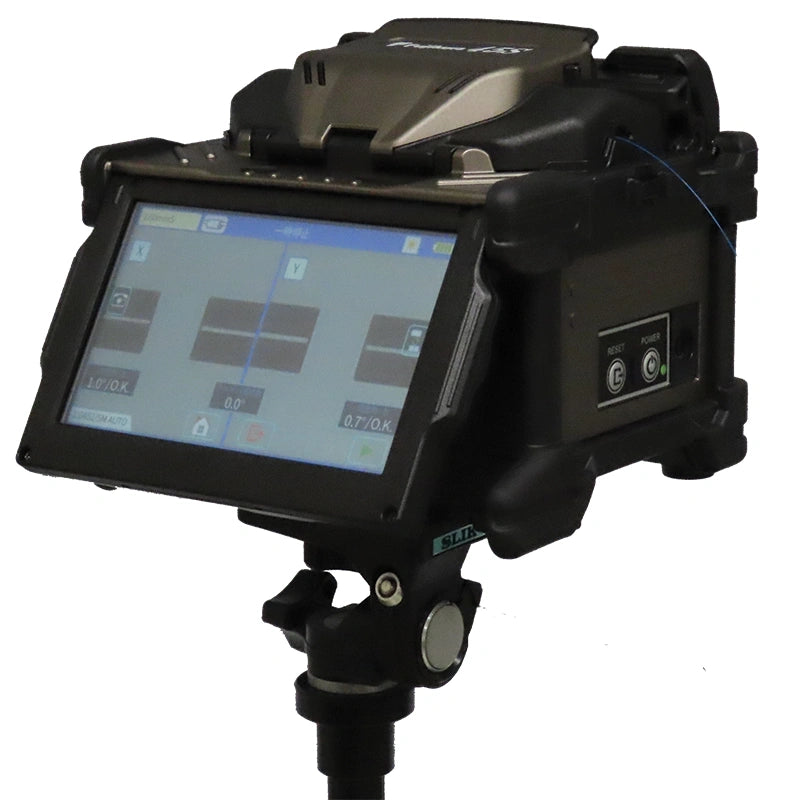

S017524 TS-03 Tripod Screw (90 Series)
S017525 ST-02 Fusion Splicer Strap
S017550 CLAMP-DC-12 (Drop cable clamp for work tray)
S014777 USB-01 Cable
S017514 CC39 Transit Case
S014397 Splicer V-Groove Cleaning Kit
Warranties
S012996 One Year Extended Warranty
S013000 Two Year Extended Warranty

More Products Available

If you didn't find what you are looking for here, CONTACT US. Not everything we carry is listed online and we can order any products available from this manufacturer.
